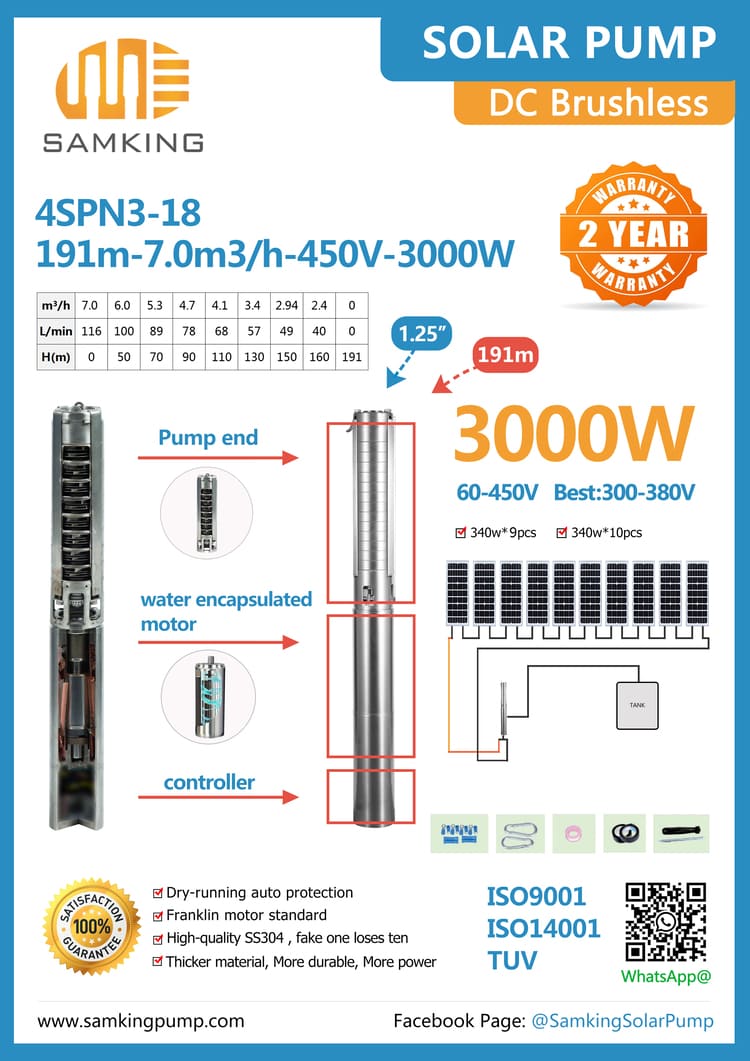

Essential Infos
Power
3000W
/ 4.02Hp
Power Type
DC
Impeller Material
Stainless Steel 304
Pump Body
stainless steel 304
Max Head
191m
Outlet Size
1.25 inches
Impeller Type
Centrifugal
Max Flow
7.0m³/h
Pump Length
N/A
Controller
internal
DC Voltage Range
60-380V
AC Voltage Range
N/A
Certificates
CE,TUV, SUD, UL, ISO9001,
ISO14001
Motor Details
Power:
Material:
Type:
Feature:
Bearing:
Current:
Submersion:
Water Temp:
Efficiency:
3000W
AISI 304
BLDC motor
Encapsulated water filled
Thrust bearing system
Max. DC 15A
Max. 150m
Max. 40°C
Max. 85%
Insulation Class:
Max Voltage:
Optimal Voltage:
Max Speed (Plastic):
Max Speed (SS304):
Max Speed (Helical):
Enclosure Class:
Required Cooling Flow:
F
DC Max. VOC 100V
DC Best. Vmp 40-90V
4500 RPM
4000 RPM
4000 RPM
IPX8
0.5L/s
Controller Details
Type:
Voltage:
MPPT Efficiency:
Enclosure Class:
internal
40-90Vmp/100Voc
Max.98%
IP65
PROTECTION TYPE
Dry-Run:
Reverse:
Phase Loss:
Over-Voltage:
Low-Voltage:
Over-Current:
Over-Load:
Over-Power:
Over-Temperature:
Stall:
STATUS
On
On
On
On
On
On
On
On
On
On
Flow Rate Diagram
Monthly Output Analysis
What’s Included
• 1* 3inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape
Not Included (Self-Prepare)
• Suitable solar panels. Check on Instructions.
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector
• Wire power cable (2 wires plus earth).
Specifications (Pump+Controller)
Gross Weight
10.5 KG
Net Weight
8.5 KG
Dimension
61*36*16 MM
Length
/
System Reference
Product Advantages:
/ Stainless Steel-AISI 304 (316 Optional)
/ BLDC High Efficiency Motor
/ Internal Controller
/ Powered by DC Power Only
/ Voltage/Current/Power/Speed Display
/ Encapsulated water filled motor(No pollution risk)
/ Soft start running makes system's life longer
/ Thrust bearing system
/ Positive and negative pole reverse connection alarm
/ Over-load/Over-current/Over-voltage/Low-voltage protection
/ Dry protection(No additional float sensor required)
/ A wide range of accessories
Pump End:
Stainless steel: AISI 304 (316 optional)
Non-return valve
Recommend Max Input
Standards:
Note:
* Recommend 2 pcs of 550W solar panels in series
* The Controller is IP 65 Rated however it is recommended that it is not mounted in direct sunlight
* VOC (V) Volts open circuit nothing connected; Vmp (V) Volts maximum power point under load
* Exceeding limits may cause serious harm or irreparable damage
Controller Data:
Controller Type: External
MPPT Efficiency: Max.98%
Voltage: 40-76Vmp/96Voc
Enclosure Class: IP65
Over Temperature Protection: Active
Losing-Phase Protection: Active
System Overview:
Head: Max.36m
Flow: Max. 100L/min
Recommend Max Input: Max. 0.6kW
Minimum Well Diameter: Min 3inch
Pump Discharge: Rp 1.25
Efficient Max: 98%
Motor Data:
Voltage: Max.36m
Current: Max. 100L/min
Recommend Max Input: Max. 0.6kW
Minimum Well Diameter: Min 3inch
Pump Discharge: Rp 1.25
Efficient Max: 98%
