In countries with advanced animal husbandry, stable and economical water supply for livestock is a key concern.
Samking provide reliable solutions with features like
hybrid power, generator auto-start, and GPRS control,
eliminating worries about water shortages.
01/05
What’s the Magic
Behind it:
•
The system reduces electricity costs and offers an eco-friendly solution for pool maintenance.
•
A solar-powered pool pump uses energy from solar panels to power the pump, circulating water through the filter without relying on the electric grid.
•
Offering a hybrid AC/DC power source, ensuring reliable water circulation in all weather conditions, with solar panels installable on the roof or in a sunny yard spot.
02/05
Whether installing a new system or upgrading an existing one, we'll guide you through the essential information you need to get started.
Start a Perfect
Watering System:
Cattles
or Buffalos
50-60L
Per Day
Horses
Typical
80L
Per Day
Pigs
Typical
30L
Per Day
Sheeps
or Goats
7.5-15L
Per Day
01- Know Livestock's
Water Needs
Livestock’s daily water needs is key to designing an effective system. Water requirements
vary by species and depend on factors like environment, diet, and individual circumstances.
02- Learn How to Pick the
Ideal Solar Pump
Considering your water source, lift, distance, daily needs, Ensure the pump's head and flow rate match your requirements, pair it with appropriately sized panels.

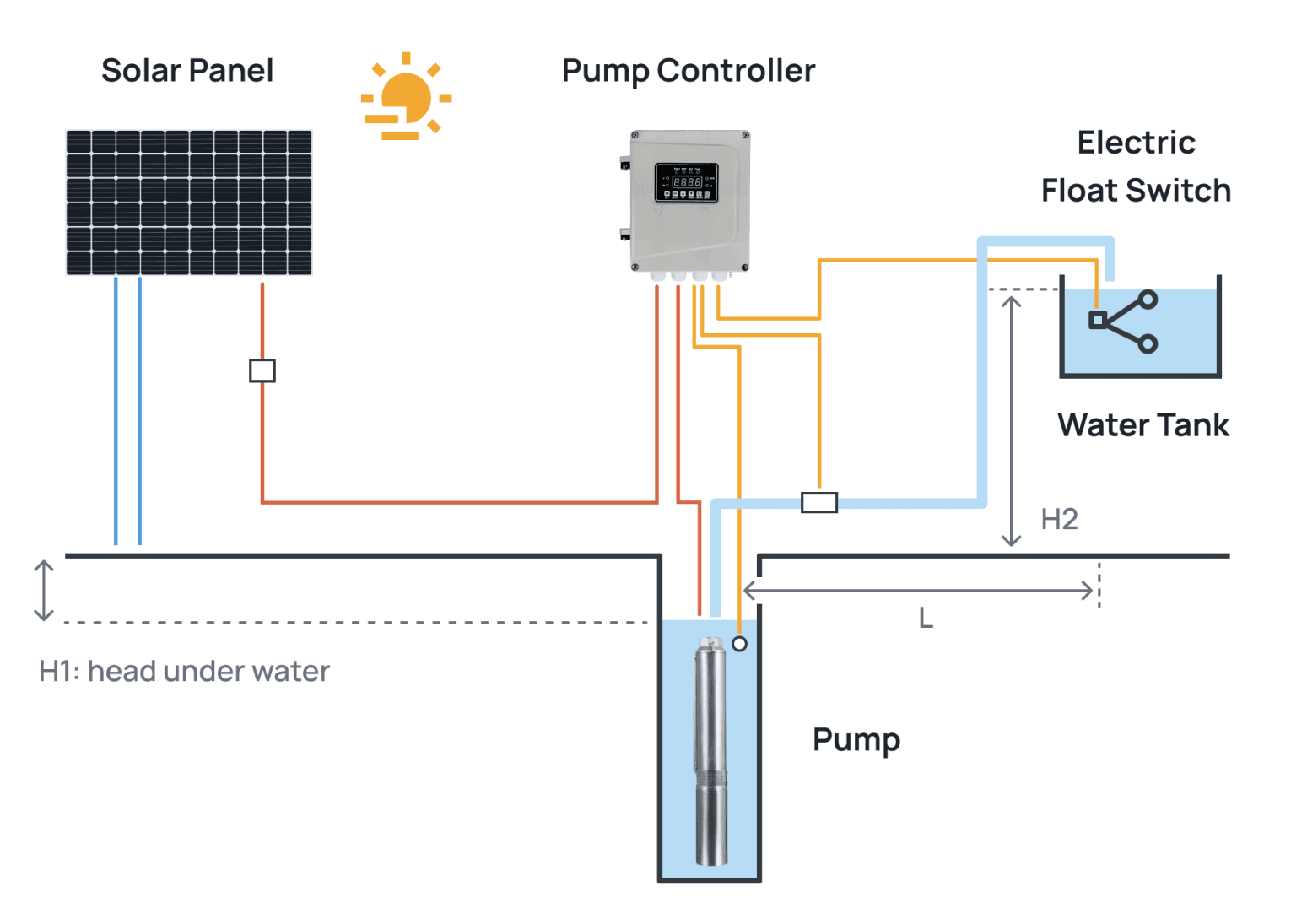

• What is the water source? (Borehole or River)
• Lift from the water surface to the ground? (H1)
• Horizontal distance of water transport? (L)
• The daily water requirement? (m³/day)
• Height of the tank? (H2)
ACTUAL LIFT HEAD
= H1 + H2 + 10%L
KEY CRITERIA (1)
Model Max H * 70% > H1 + H2 + 10%L >
Max Head * 30%
KEY CRITERIA (2)
Model Max F >
Daily Water Requirement (m³/Day)
03- Calculate Lift & Head
04- Select the
Right Solar Panels

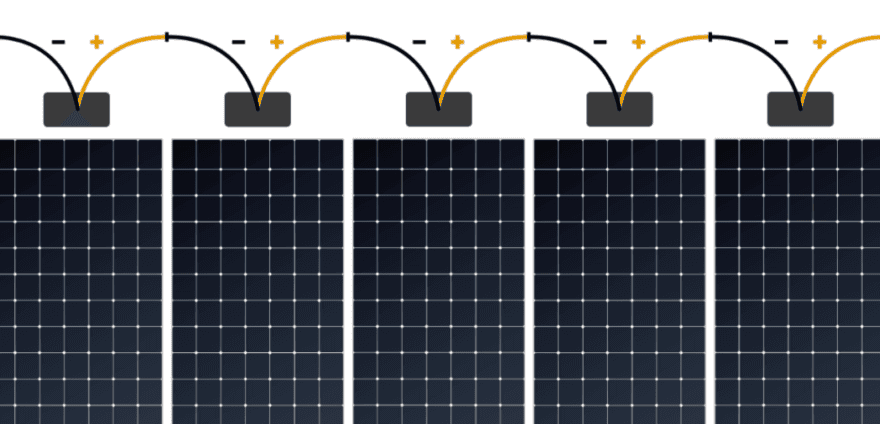

The solar panel array should be 1.3 times the water pump's power, with voltage matching the pump's range. (For the 0.3-3HP SAMKING Solar Pump Family, we recommend connecting panels in series.)
E.g.,5 Panels Connected in Series:
(410W, Vmp: 38.5V, Voc: 42.6V)
F Power = 5 x 410W = 2200W
F Vmp = 5 x 38.5V = 192.5V
F Voc = 5 x 42.6V = 213V
Ensure*
F Power ≥ Pump Power x 1.3
F Voc < Pump's Max Voc
DC Working Voltage Range (Economic Models)
Rated Power
300W/0.3HP
600W/0.5HP
1000W/0.75HP
1200W/1HP
1800W/1.5HP
2200W/2HP
3000W/3HP
Rated Voltage
20-40Vmp / Voc ≤ 48V
40-76Vmp / Voc ≤ 96V
65-110Vmp / Voc ≤ 150V
80-150Vmp / Voc ≤ 180V
110-250Vmp / Voc ≤ 440V
150-300Vmp / Voc ≤ 440V
250-380Vmp / Voc ≤ 440V
03/05
See Our
Proven Cases
Etosha, Nambia
The Namibia Desert, one of the oldest on Earth, challenges elephants’ survival. In 2019, a volunteer team installed a solar pump for livestock and wildlife in the Ugab area, but the pump was stolen earlier this year, forcing elephants to
travel long distances for water.
With support from a partner in Uis, it replaced by the
Samking 4SP14-8 5HP Solar Water Pump, powered by 16
mono-crystalline 300W panels. The system delivers up to 18,000 litres per hour, refilling the reservoir in 5 hours. The pump is secured with a safety lock.
